Jimmy McHugh & his equipment is assisting a short line at a derailment that consisted of two box cars and a SW-1 diesel locomotive, January 1970.
The McHugh Company under the leadership of Jimmy McHugh during the early 1960’s began to assist heritage railroads, rail transportation museums, and trolley preservation groups, with on-site services of re-railing wrecks, transporting antique railroad equipment and trolley cars by truck, along with providing rigging and cranes services. Then in 1973 the McHugh Company also began rebuilding steam locomotives, vintage diesel locomotives, and other rail equipment, for heritage railroads, short lines, and museums.
Today, McHugh Locomotive & Equipment continues to provide museum quality restorations to vintage diesel locomotives, historic railroad equipment, and trolley cars. The world class work that is performed by our experienced and skilled multi-craft people at our modern facility is hard to replicate in our industry. We are a supplier that you can count on to deliver positive results for your heritage railway organization.
Jimmy McHugh with one of his large truck cranes and the McHugh rigging crew, has placed the derailed SW-1 diesel locomotive back onto the track at a short line railroad, January 1970.
McHugh Locomotive & Equipment has the capabilities to provide your association with on-site service anywhere within the USA. This work can range from: general locomotive and equipment inspections to major repairs, or to assist with the load out and transportation of equipment to our facility for a complete museum quality restoration. We can also supply new or reconditioned mechanical parts, traction equipment and components for vintage and historical diesel locomotives.
Our technicians have repaired or completely rebuilt several historical and vintage locomotives for various customers. These old locomotive manufacture’s units that we have worked on are; Alco, Baldwin, Davenport, EMD, Fairbanks-Morse, General Electric, Plymouth, Porter, Vulcan, and Whitcomb. If you have a road unit, switcher, or even a small narrow 3 foot wide track gauge locomotive we can successfully perform this service for you.
November 1967, Jimmy McHugh was contracted to coordinated the unloading of two historic trolley cars from a ship at a pier located in Philadelphia PA onto two of his tractor trailers. The job also included transporting the two trolley cars to the Rockhill Trolley Museum and to unload them from the trailers onto the track by a set of rail ramps. This was the first project that Jimmy McHugh provided to RTM and they were very satisfied with the work. A relationship developed between RTM and Jimmy and the McHugh Company continue to moved many other trolley cars and various other railway related equipment for the museum.
The former York Railways street car #163 was located at a field in York County PA and acquired by the Rockhill Trolley Museum in 1973. Some of the RTM museums volunteers and a few McHugh employees, loaded #163 onto one of one of our tractor trailers with a new at the time McHugh 25 ton capacity hydraulic truck crane and then transported #163 to the museum.
West Chester Railroad a heritage tourist rail line with “big ALCO & EMD motive power” has selected McHugh Locomotive & Equipment to be their trusted locomotive contractor to assist them with major restoration work.

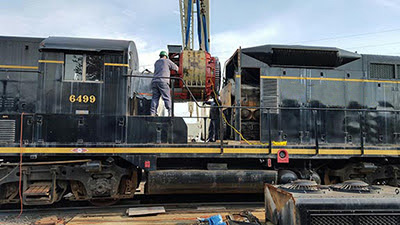

The West Chester Railroads 1950’s built EMD GP-9 a former Baltimore & Ohio RR locomotive #6499 during the year of 2015 suffered a failure to the main generator with alternator assembly. The restoration work to the #6499 was necessary to be done on-site at the land locked WC RR. This work included replacing: the main generator with alternator assembly, the two old engine blower assemblies, the auxiliary generator, electrical repairs, plus to also make some steel repairs to the engine hood and cab roof.
The West Chester Railroad offers tourist train rides on a scenic 90 minute round trip through Chester County. Vintage trains depart from the town of West Chester, PA. The historic right-of-way is a former Pennsylvania Railroad branch line, and you will travel 8 miles to the Glen Mills station. The train has a 20 minute layover stop there. The all volunteer WCRR also offers several specially themed trains and Christmas trains during the operating season. If you would like to visit the West Chester Railroad, more information can be viewed at their website: westchesterr.com
Georgetown Loop Railroad / History Colorado operated by: Historic Rail Adventures LLC in 2013 selected McHugh Locomotive & Equipment to become one of their valued parts suppliers and contractors to provide technical assistance with the lines vintage diesel locomotives.
Westinghouse 928-A traction .

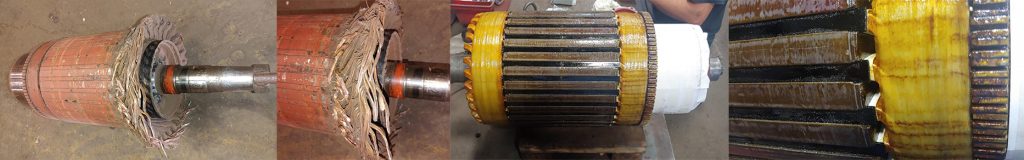

The historic 3 foot narrow gauge Georgetown Loop Railroad prior to the year 2013 previously had various other vendors preforming on site repairs to the lines diesel locomotives and also providing traction motor and other electrical equipment repairs. However, the Colorado heritage tourist railroad was not satisfied with the quality of those firms products and services. McHugh Locomotive & Equipment during 2012 was contracted to re-manufacture five rare Westinghouse 928-A several traction motors to O.E. M. specifications that also include manufacturing and supplying 6 new pinion gears. These traction motors where required for a rare 6 axle vintage 1950’s built 3′ narrow gauge Porter diesel locomotive that also was equipped with obsolete style Westinghouse electrical equipment. We also supplied various types of replacement electrical component parts for the rare Porter diesel locomotive.
A rebuilt WH 1443A traction motor, gear box, & 3′ axle set.
The world class workmanship that we provided on that first order has led to McHugh Locomotive & Equipment becoming a very valued supplier of the Georgetown Loop RR to assist them in maintaining their vintage diesel locomotive fleet.
Since 2013, we have repaired several pieces of rare traction equipment for the 3 foot narrow gauge heritage railroad. This includes: GE 762 traction motors, WH 1443A traction motors, GE 733 traction motors, GE 1503 main generators. We have continued to assist the historic 1884 built railroad with on-site technical support and service in Colorado when it is required on their vintage diesel locomotives, and to supply rebuilt parts and components, when required.
Pennsylvania Railcar Restorations contracted the McHugh Company to provide heavy repairs to #9206 an EMD 1949 built SW-1 diesel locomotive of PRR heritage back to service.
On site changing out the two truck assemblies on SW-1 PRR 9206.
Pennsy Railcar Restorations desired to obtain an SW-1 type EMD diesel locomotive of Pennsylvania Railroad heritage. The firm was seeking a locomotive that was not a total basket case or a unit that would require a total frame up restoration. It was an important factor to P.R.R that the total overall cost of the project remained within their allotted budget to purchase a SW-1 locomotive and to include the restoration cost. Pennsy Railcar Restorations did not have the capabilities to perform heavy repairs to a locomotive so it could be shipped rail and contracted the McHugh Company to perform that work.
PRR 9206 with replacement truck assemblies.
The first phase of the project was for McHugh Locomotive & Equipment to locate a former Pennsylvania R.R. SW-1 locomotive. We inspected several units across the USA, and the #9206 was selected because required the least amount of repairs to have it back in service. The McHugh company supplied two sets of reconditioned truck assemblies with four reconditioned traction motors, that replaced the old friction bearing truck assemblies. We also replaced the old draft gear assemblies and coupler assemblies with alignment control couplers. The old air brake system was updated, along with various other repairs that were made to the locomotive, so it could be shipped over the class I railroads.
West Chester Railroad a heritage tourist rail line with “big EMD & ALCO motive power” has selected the McHugh Company to assist them with on-site service and repairs.
Removing the failed truck assembly from 1803.

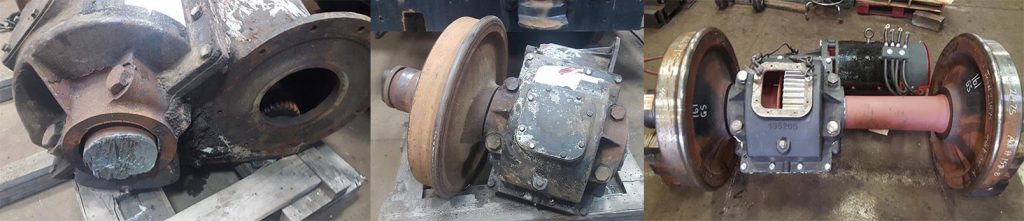

The WC RR’s rare ALCO model RS18 number 1803 had a failure to one of the obsolete style oil bath SKF bearing on an axle assembly. The McHugh Company manufactured a new replacement axle that now had 6-1/2″ x 12″ AP style class F type roller bearings. We then removed the two good used wheels and bull bear from the failed axle assembly, these parts where checked for defects. The qualified wheels and bull gear where then installed onto the replacement axle. The wheels where re-profiled to FRA/AAR standards providing the WC RR a considerable amount of cost savings. The old style oil type boxes where converted to accept the AP class F type roller bearings.
The 1803 with the rebuilt truck assembly installed.
The truck assembly while it was at the McHugh facility in Fairless Hills, PA also received various other necessary repairs that where required. When the unit was completed, it then was placed onto a McHugh Company tractor trailer and delivered to the rail yard in West Chester, PA. Here we supplied a crane again to lift the locomotive and then installed the repaired truck assembly back under the #1803.
The number 1803 ALCO locomotive is a favorite of the West Chester Railroad crew members and it was placed back into service during the 2017 operating season. The West Chester Railroad is operated by a all volunteer membership and is a 501-C3 non-profit corporation.
Black River Railroad Historical Trust selected McHugh Locomotive & Equipment as their qualified locomotive service contractor to have the heritage rail lines #438 diesel locomotive ready to provide motive power for the 2016 tourist train season.
The 501-C3 non-profit corporation Black River Railroad Historical Trust contracted McHugh Locomotive & Equipment to provide repairs to its #438 EMD SW-9 diesel locomotive. The locomotive previously was owned by the United Railroad Historical Society of NJ, who leased it to a New Jersey short line freight operation for a period of approximately 10 years. When the #438 arrived at its new home in Ringoes, NJ at the BRRHT there were several issues with the locomotive that kept it from operating.
The BRRHT volunteer staff preformed a visual inspection of the locomotive, and this unfortunately lead to the discovery of several mechanical defects with its prime mover and other operating components. After these defects were found, the BRRHT decided they required the expertise of a professional locomotive repair service company and they contracted McHugh Locomotive & Equipment to make a complete inspection of the 438’s prime mover and operating components.
During the inspection by the McHugh service team, we detected several critical mechanical defects that could cause catastrophic engine failure if these items were not repaired correctly. The engine had been operated with the lubricating oil being diluted by fuel oil leaking into it from defective injectors, and defective fuel cross over delivery lines. There were also several of the front 6 power assemblies leaking water into the crankcase. Another issue was that numerous external water leaks where detected and the bottom of the lubricating oil cooling tank was leaking water due to it being rotted out.
The BRRHT approved the work to remove the front 6 power assemblies to investigate the water leakage on those units. The locomotive has a “B” type engine block and unforentally the power assemblies where previously replaced by another source improperly without having the proper lower “o-ring” seal being installed on the heads. This caused the water to leak into the engine crankcase and lube oil system. The work on #438 consisted of making the necessary corrective repairs to the prime mover, that included installing the proper “B” style head “o-ring” seals and fire rings on the 6 front power assemblies. McHugh Locomotive & Equipment had the SW1200hp EMD locomotive #438 repaired and back into service on time as scheduled to provide motive power for the BRRHT tourist trains in late May 2016.
The East Broad Top Railroad a historic three foot narrow gauge line, that was owned by the Kovalchick Corporation from 1956 to 2020 had Jimmy and JC McHugh over the decades assist them with many projects.
The McHugh family in the early 1960’s began to assist the historic East Broad Top RR with various projects. This work included diesel locomotive services that consisted of replacement: traction motors, main generators, traction drive gear boxes, along with truck assembly repairs, and Detroit Diesel engine repairs.
McHugh Locomotive & Equipment today, continues to assist the Kovalchick Corporation with parts and on-site service of diesel locomotive repairs at their scrap facility located in Indiana PA, and locomotive crane repairs at their Steel Mill located in Franklin PA.
